Share

Embedding configurators

Each configurator built into the platform generates a unique source link (src) from where anyone can access the configurator, in other words from the unique source link anyone can see what you see in the 'Preview' mode. The source link is a long, secure URL and can be used to embed the configurator into a website.

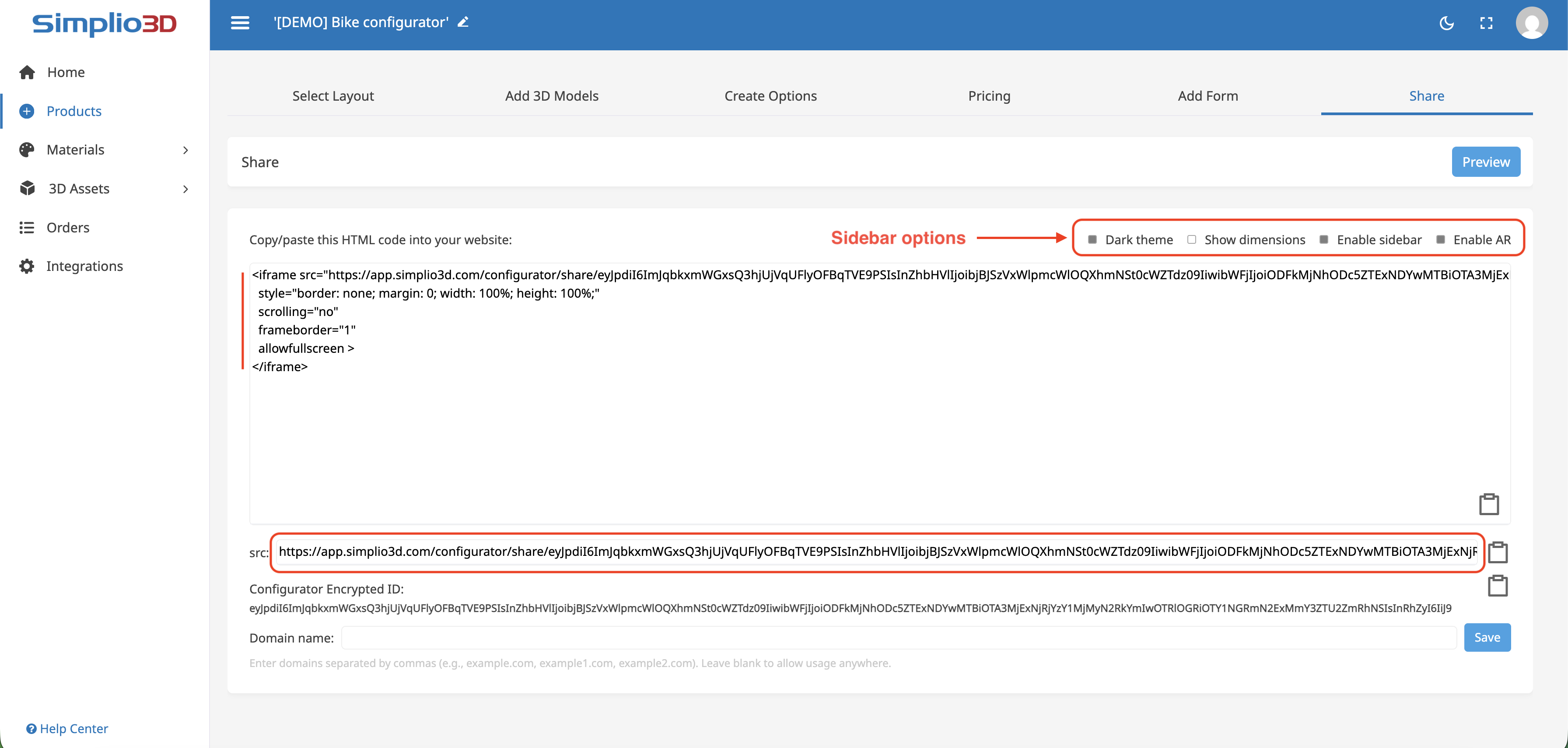

Where we find the configurator's source link (src)

The easiest way to embed the configurator wherever you want is to use HTML code with the source link (src) in it:

<iframe src="[src link]"
  style="border: none; margin: 0; width: 100%; height: 900px"
  id="3d-configurator-iframe"
  scrolling="no"
  frameborder="1"
  allowfullscreen >
</iframe>

In addition to using the HTML iFrame code, you can also use JavaScript alongside it to better define your embedding with more settings.

Example:

<script>
  const iframe = document.getElementById("3d-configurator-iframe");
  const widthIframe = 1200;
  const heightIframe = 800;
  const paddingWidth = 0;
  const paddingHeight = 0;
  let iframeOrigin = "";
  let mobileWidth = 0;
  let full = false;
  iframe.style.width = `${widthIframe}px`;
  iframe.style.height = `${heightIframe}px`;
  const handleResize = () => {
   if (!full) {
     if (iframe.parentNode.clientWidth - paddingWidth <= widthIframe) {
       iframe.style.width = `${iframe.parentNode.clientWidth - paddingWidth}px`;
     } else {
       iframe.style.width = `${widthIframe}px`;
     }
   if (iframe.parentNode.clientHeight - paddingHeight <= heightIframe) {
     iframe.style.height = `${iframe.parentNode.clientHeight - paddingHeight}px`;
   } else {
     if (iframe.parentNode.clientWidth - paddingWidth <= mobileWidth) iframe.style.height = `${heightIframe}px`;
   }
    }
   if (iframeOrigin) {
     iframe.contentWindow.postMessage(
      {
       type: "DIMENSIONS",
       windowW: iframe.parentNode.clientWidth - paddingWidth,
       windowH: iframe.parentNode.clientHeight - paddingHeight,
       iframeW: iframe.clientWidth,
       iframeH: iframe.clientHeight,
      },
      iframeOrigin
    );
   };
  };
  window.addEventListener("resize", handleResize);
  handleResize();
  window.addEventListener("message", (event) => {
   if (event.data?.type === "GET_DIMENSIONS") {
    mobileWidth = event.data?.mobileWidth;
    iframeOrigin = event.origin;
    handleResize();
   }
   if (event.data?.type === "FULLPAGE") {
    if (event.data?.value === true) {
     full = true;
     iframe.style.width = "100%";
     iframe.style.height = "100%";
     iframe.style.position = "fixed";
     iframe.style.top = "0";
     iframe.style.left = "0";
    } else {
     full = false;
     iframe.style.width = `${widthIframe}px`;
     iframe.style.height = `${heightIframe}px`;
     iframe.style.position = "";
    }
   }
  });
</script>

Sidebar Checkboxes

Users can enable or disable sidebar buttons by selecting the available checkboxes:

  • Dark theme - Users can switch the frontend UI into dark mode

  • Show dimensions - Allow option to show dimensions when Numeral blocks are used. More information about how to properly set 'Show dimensions' here: Numeral.

  • Enable sidebar - Users can turn off/on the entire sidebar

  • Enable AR - Allow configurator users to generate QR for Augmented Reality
